There's a Nissan Marine Outboard that Fits Your Needs.

  Select Horsepower:

























Home > Products > NSF30

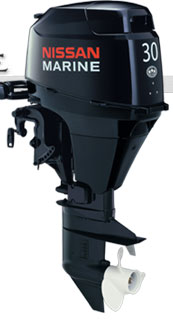

EFI outboards


Our 30 hp has it all! Nissan Marine has turned its tried and true 3-cylinder 30 hp into a 4-stroke and added EFI (Electronic Fuel Injection) to give you the exceptional fuel economy you need without compromising performance. We are the first to offer a battery-less EFI system that provides quick throttle response and very smooth rides on the water.

The new multi-function tiller handle comes standard on all 30hp models with power tilt & trim. This tiller includes all controls conveniently located on the handle for easy access giving you more control, better maneuverability and increased safety.

When you need compact power, the 30 hp 4-stroke has exactly what you need.

  • Designed with proven technology
  • Advanced cross-flow induction for smooth operation
  • Canister style oil filter for easy replacement
  • Larger capacity oil reservoir for optimum lubrication
  • Tuned intake system for crisp takeoffs
  • Ultra low emission, EPA and CARB approved
  • 5 Year limited warranty

  • Electronic fuel injection
  • The boating industry's first battery-free, manual start EFI 4-stroke
  • Digital CD ignition system for quicker starts
  • Large alternator and rectifier for superior battery charging
  • Adjustable steering friction and trim tab for reducing steering effort
  • Front mounted shift lever for easier operation
  • Power trim & tilt*
  • Available in Remote control or Tiller Handle models

  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • 6.6 gallon (25 liter) Fuel Tank including fuel fittings and fuel line
  • Aluminum propeller

  • Overheat warning (audible)
  • Low oil pressure warning (audible)
  • Start-in-gear protection for safer engine starting
  • Safety lanyard (an essential protection feature standard on all Nissan outboards)
  • Over-rev. limiter
*Certain models
** Remote control models
